MIR Spirobank II Advanced Spirometer/Oximeter - Reusable Turbine x1
MIR Spirobank II Advanced Spirometer - Reusable Turbine x1

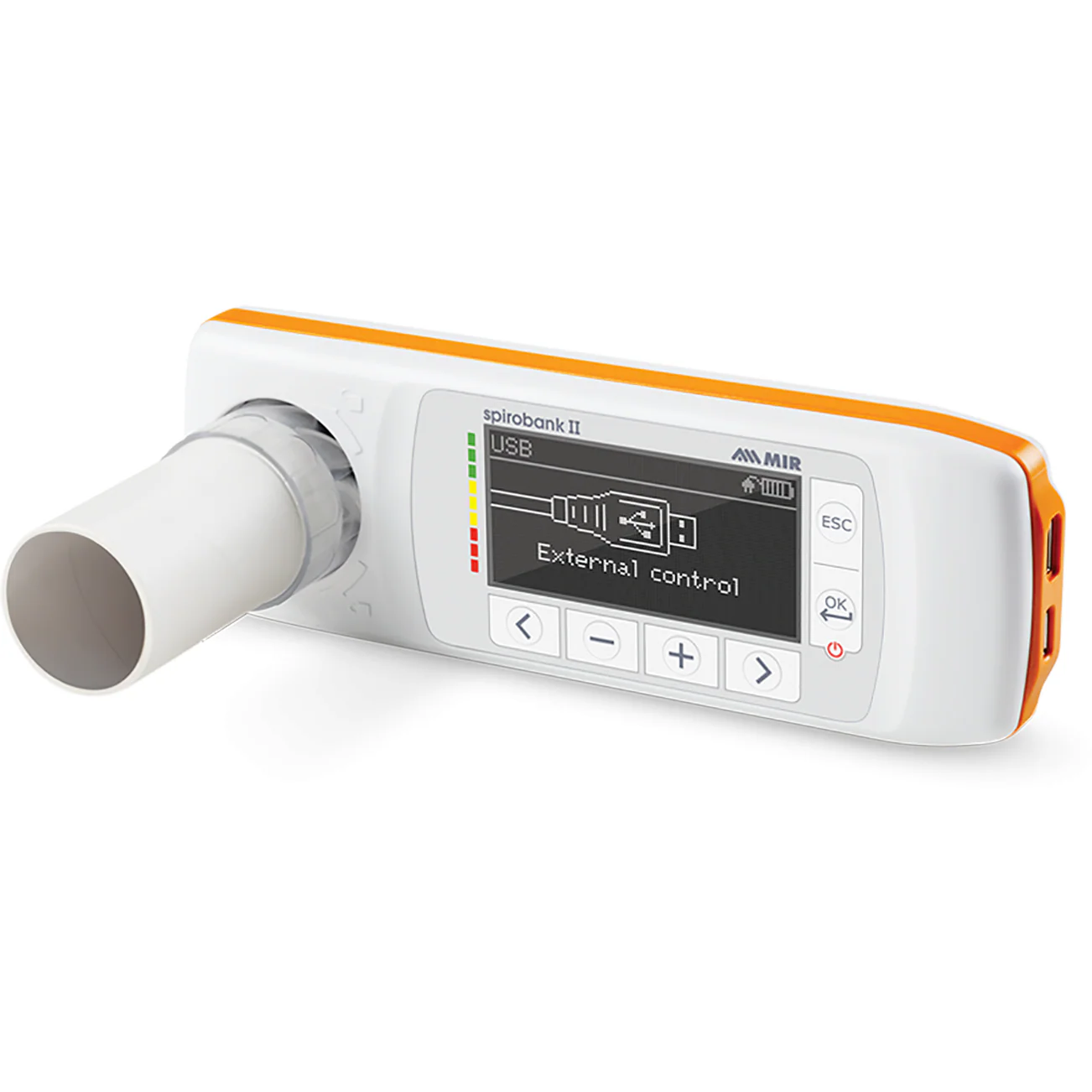

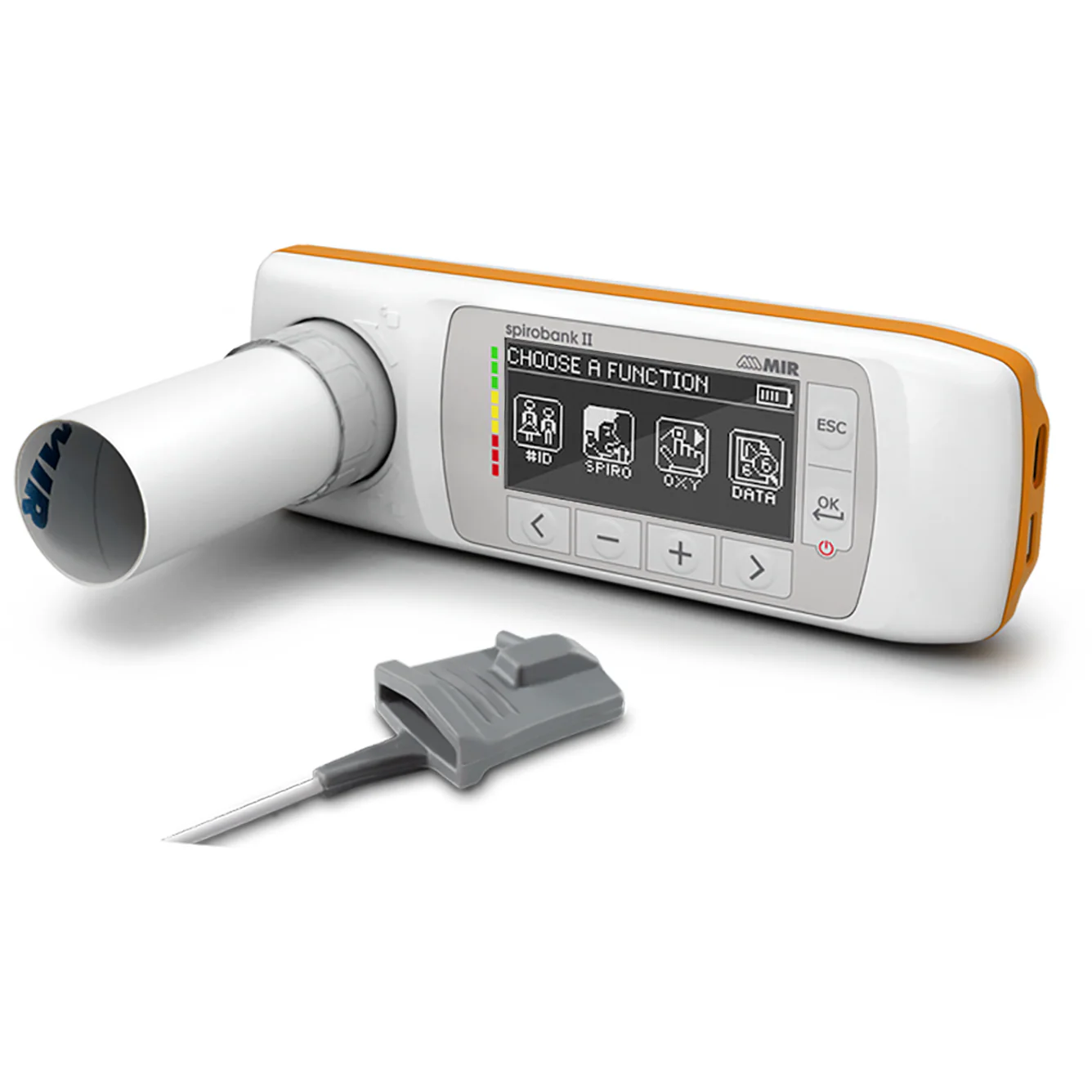

The Spirobank II® Advanced is a handheld, portable diagnostic spirometer that offers a comprehensive range of spirometric parameters for more in-depth spirometry testing.
Its pocket size design with rechargeable long-life battery makes it ideal for use in situations where remote testing is required. The user interface is fast and intuitive to operate with an icon-based navigation menu on a backlit, high resolution display. lt can be used as a “stand-alone” with onboard memory that is capable of storing up to 10,000 test results.
It can also connect wirelessly to a PC (or directly via USB) allowing for real-time spirometry testing, and downloading of test results stored on the device using the free MIR WinspiroPRO® PC Software.

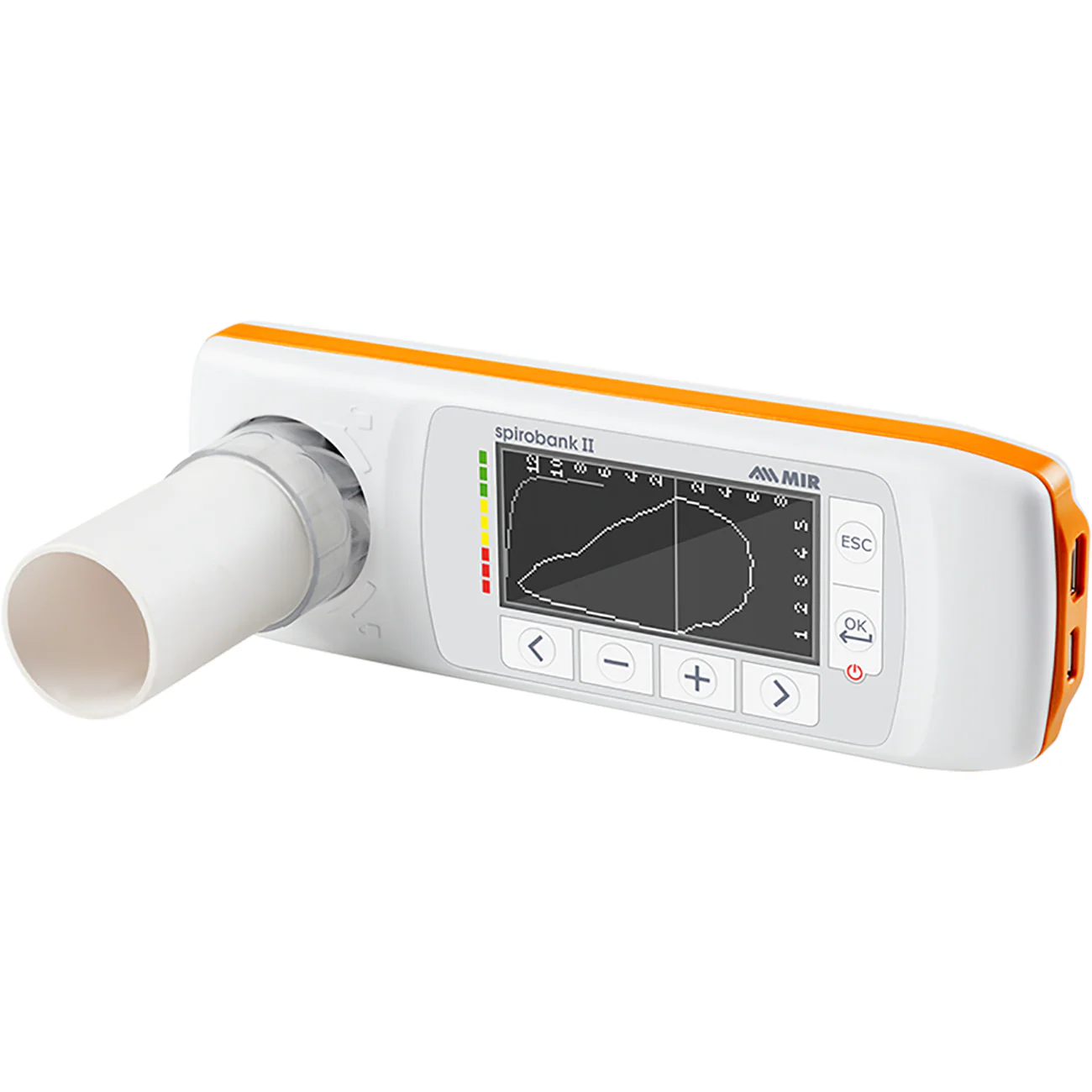

The Spirobank II® Advanced measures over 45 selectable parameters and gives a PRE and POST bronchodilator comparison. Results are previewed on the display following a test, with a flow/volume graph in addition to the patient’s actual spirometry readings for immediate assessment. It also features a traffic light health indicator for easy interpretation of results.

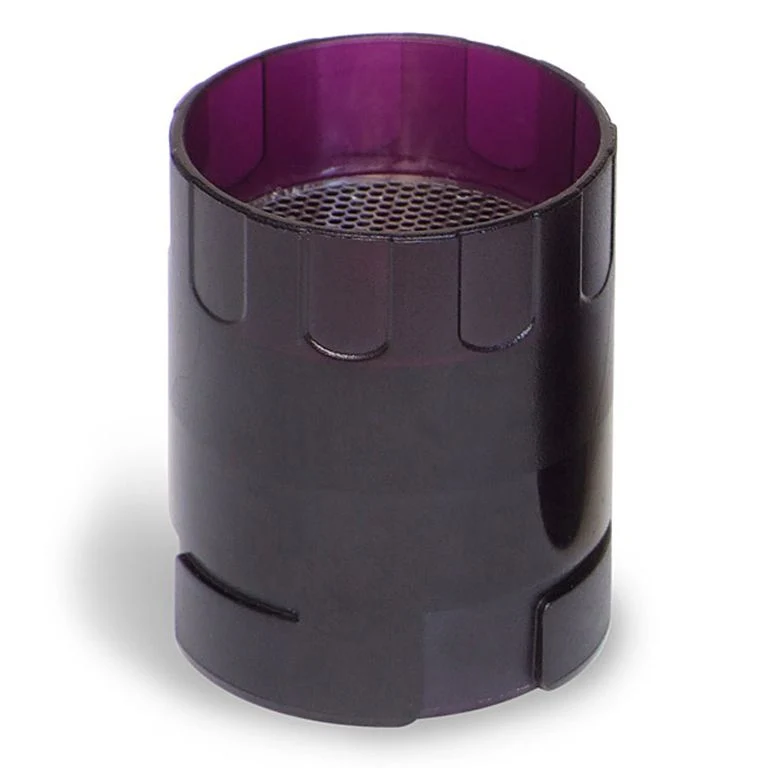

The Spirobank II® Advanced comes with a re-usable turbine that can be used with standard adult one-way valve mouthpieces
Key features:
- Easy to use handheld spirometer
- Navigate easily through the icon-based menus on a clear, high resolution screen
- Over 45 selectable parameters - advanced handheld diagnostic spirometry ideal for use in any clinical setting
- Traffic light health indicator A visual way to easily interpret test results
- Large memory storage Store up to 10,000 tests
- Bluetooth® and USB connectivity to PC
- Download results stored on the device and conduct real-time spirometry using WinspiroPRO® PC software.
- Optional Pulse Oximetry
- Resusable turbine x1
Technical Information:
- Main spirometry parameters:FVC, FEV1, FEV1%, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25–75, FEF75–85, Lung Age, Extrap. Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated)
- Flow measurement: ± 16 L/s
- Volume accuracy: ± 3% or 50 mL
- Flow accuracy: ± 5% or 200 mL/s
- Temperature sensor: Semiconductor (0-45°C), automatic BTPS conversion
- Data transmission: USB and Bluetooth 2.1
- Power: 3.7 V, 110 mA lithium battery - USB rechargerable
- Display: 160 x 80 pixel with 6-key membrane keyboard
- Dimensions: 160x55x25 mm
- Weight: 140 g (with battery)
More Images
MIR Spirobank II Advanced Spirometer/Oximeter - Reusable Turbine x1
MIR Spirobank II Advanced Spirometer - Reusable Turbine x1
The Spirobank II® Advanced is a handheld, portable diagnostic spirometer that offers a comprehensive range of spirometric parameters for more in-depth spirometry testing.
Its pocket size design with rechargeable long-life battery makes it ideal for use in situations where remote testing is required. The user interface is fast and intuitive to operate with an icon-based navigation menu on a backlit, high resolution display. lt can be used as a “stand-alone” with onboard memory that is capable of storing up to 10,000 test results.
It can also connect wirelessly to a PC (or directly via USB) allowing for real-time spirometry testing, and downloading of test results stored on the device using the free MIR WinspiroPRO® PC Software.
The Spirobank II® Advanced measures over 45 selectable parameters and gives a PRE and POST bronchodilator comparison. Results are previewed on the display following a test, with a flow/volume graph in addition to the patient’s actual spirometry readings for immediate assessment. It also features a traffic light health indicator for easy interpretation of results.
The Spirobank II® Advanced comes with a re-usable turbine that can be used with standard adult one-way valve mouthpieces
Key features:
- Easy to use handheld spirometer
- Navigate easily through the icon-based menus on a clear, high resolution screen
- Over 45 selectable parameters - advanced handheld diagnostic spirometry ideal for use in any clinical setting
- Traffic light health indicator A visual way to easily interpret test results
- Large memory storage Store up to 10,000 tests
- Bluetooth® and USB connectivity to PC
- Download results stored on the device and conduct real-time spirometry using WinspiroPRO® PC software.
- Optional Pulse Oximetry
- Resusable turbine x1
Technical Information:
- Main spirometry parameters:FVC, FEV1, FEV1%, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25–75, FEF75–85, Lung Age, Extrap. Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated)
- Flow measurement: ± 16 L/s
- Volume accuracy: ± 3% or 50 mL
- Flow accuracy: ± 5% or 200 mL/s
- Temperature sensor: Semiconductor (0-45°C), automatic BTPS conversion
- Data transmission: USB and Bluetooth 2.1
- Power: 3.7 V, 110 mA lithium battery - USB rechargerable
- Display: 160 x 80 pixel with 6-key membrane keyboard
- Dimensions: 160x55x25 mm
- Weight: 140 g (with battery)
